547 pH/ORP Sensor with High Pressure Housing

547 pH Sensor with High Pressure Housing


  • 547 pH Sensor +



    547 pH Sensor

    • Patented Axial Ion Path® reference technology increases electrode lifespan in harsh industrial applications
    • Proprietary low-noise, high temperature signal cable
    • Specialized glass formulations
    • Universally compatible with all manufacturer's analyzers
    • Cartridge style body with dual o-ring seals for added security
    The cartridge style 547 pH Sensor is designed for secure fit in the metallic sheath set. Variable insertion depth provides flexibility when the pH sensor has to fit through nozzles, tees, or other pipe fittings. Dual o-ring seals (Viton Extreme / EPDM / FFKM options) provide compatibility with most industrial processes. Options for flush, notched, and recessed electrode tips provide flexibility in harsh applications such as pulp stock where abrasion might be a concern. Additional Sensor Info

  • High Pressure Sensor Housing +

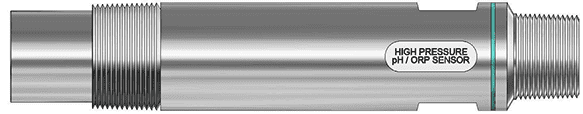

    High Pressure Sensor Housing

    • Housing individually certified to 2500 PSIG
    • 1 inch Male NPT process connection for mounting in pipe tee or with female nipple
    • 3/4" Male NPT for optional Junction Box on rear of housing (simplifies disconnecting wiring)
    • Improved heat dissipation
    • Insertion depths options from 1 to 4.5 inch
    • Choice of body materials, 316 Stainless, Hastelloy C, Titanium GR2

        Additional Accessory Info
